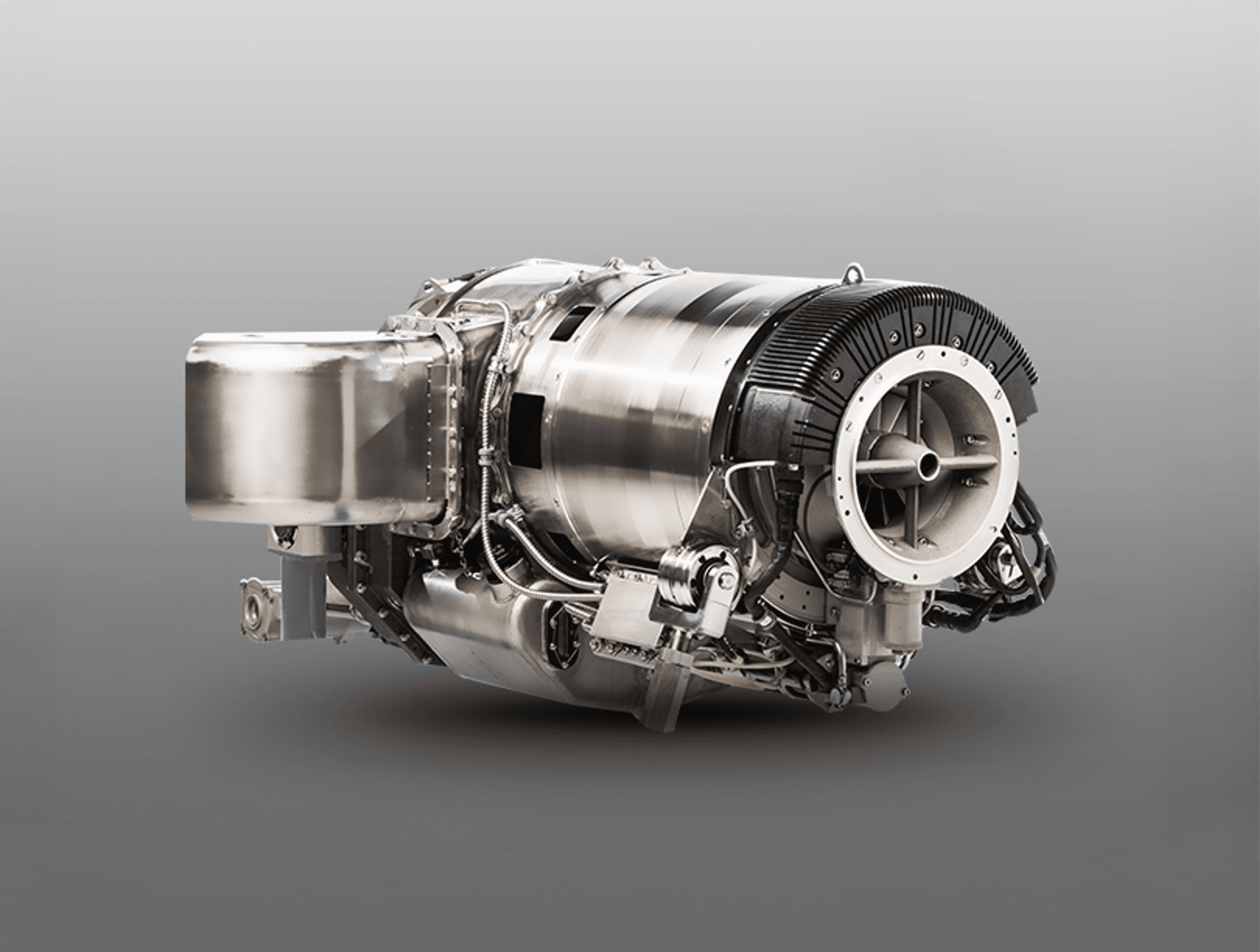

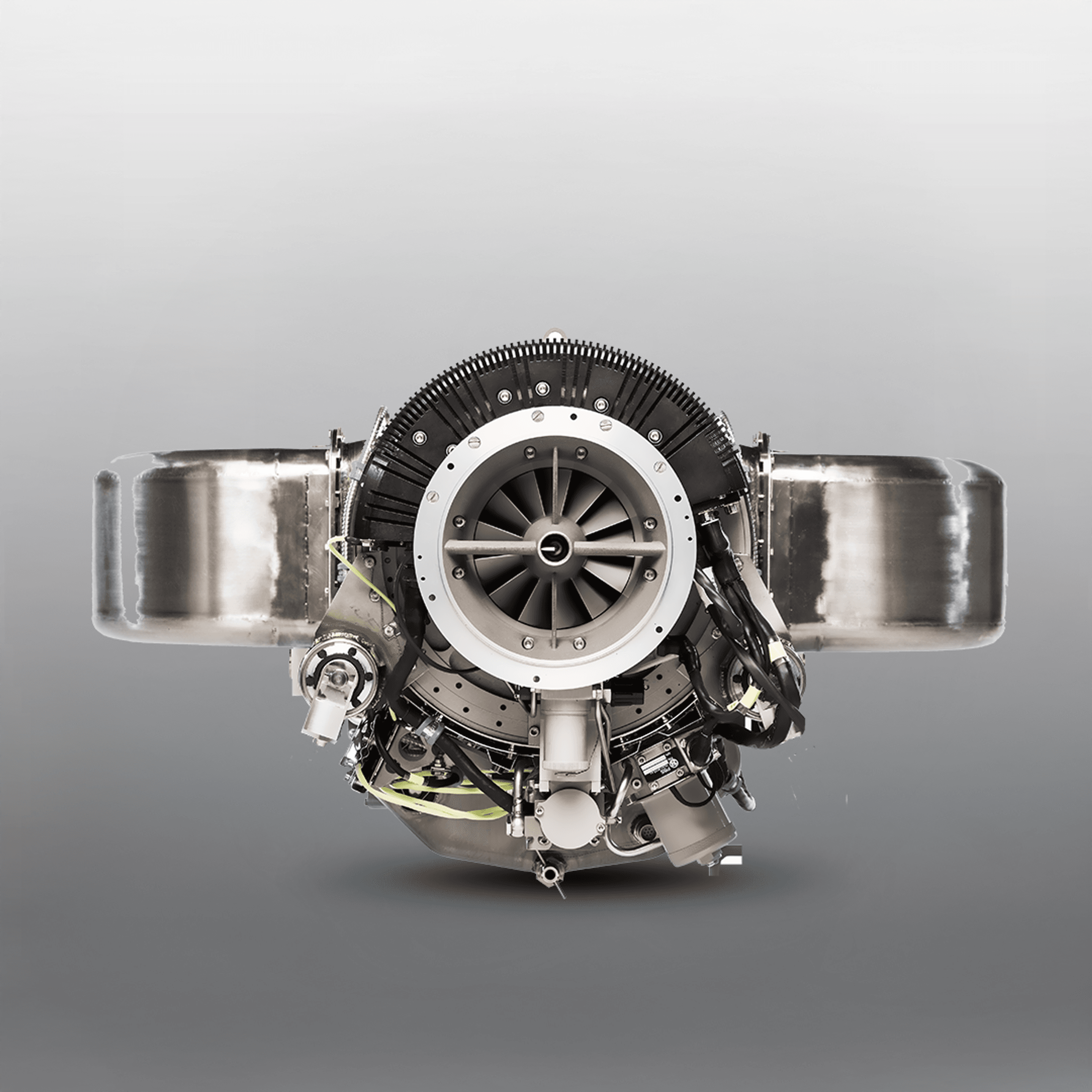

The PBS TS100 is a turboshaft engine. This type of engine emerged with the development of modern helicopters. The engine is suitable for smaller and lighter helicopters or for unmanned aerial vehicles.
The advantage of the engine lies in its small installation dimensions, low weight and high static performance at 241 HP (180 kW) with the capacity to achieve flight levels of up to 29,500 ft. (9,000 m) and a maximum starting height of 19,700 ft. (6,000 m).
Main features
- Modular design features a gas generator, power turbine and gearbox.
- Gearbox design facilitates installation of a high-speed electric generator having up to 3.0 kVA output power.
- Two engine versions: 2,158 RPM or 5,978 RPM (shaft output).
- Compact dimensions, low weight and high static power.
- Excellent power-to-weight ratio.
- Standard completion: fuel-oil system, control system, ignition unit and connection cables.
.
