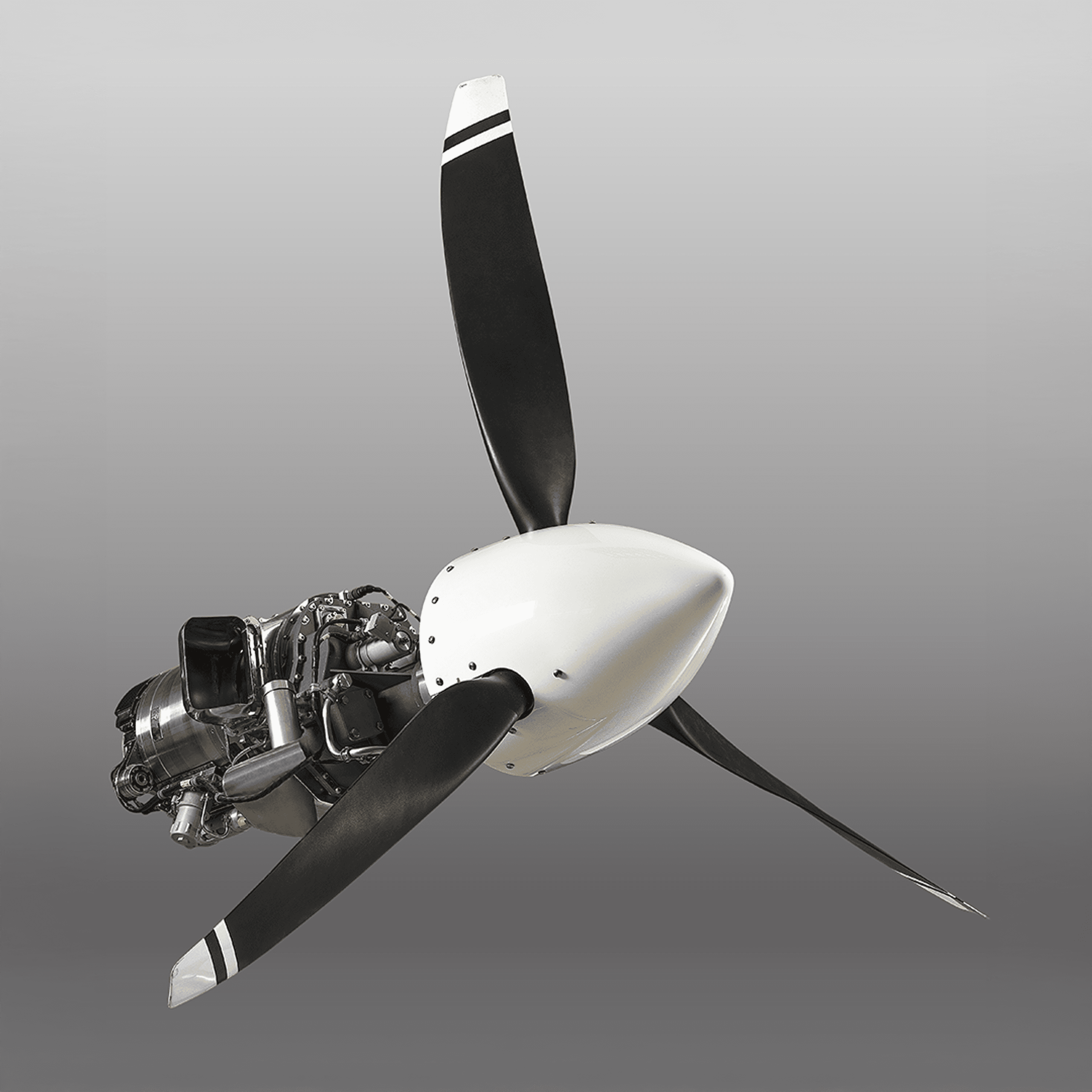

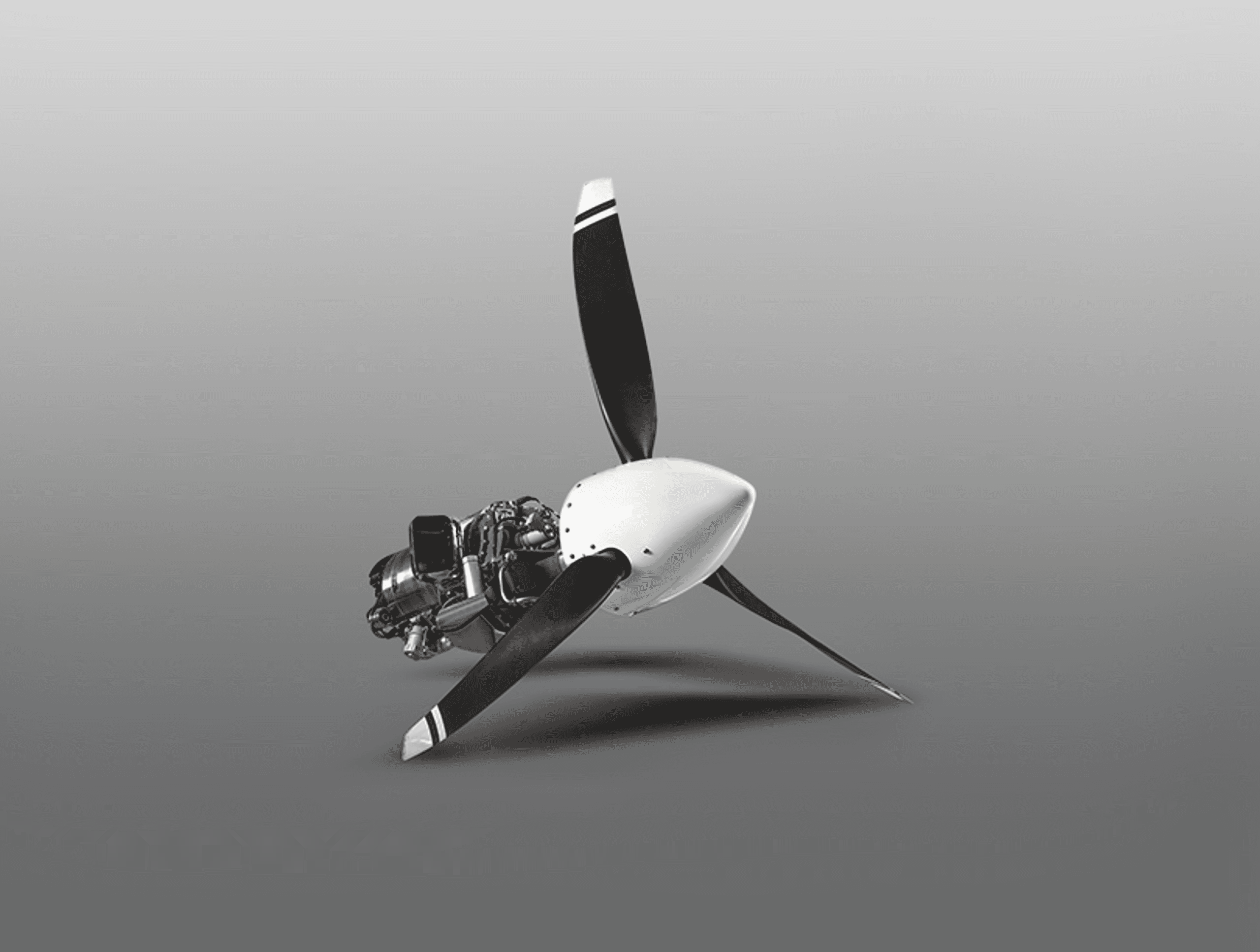

The PBS TP100 is a turboprop engine, which is ideal for small aircraft and unmanned aerial vehicles (UAV’s) and is particularly suitable for use by the rescue services, the police, the military (for reconnaissance purposes) and in agriculture.
These turbojet engines can also be used in a number of military applications and also for other purposes such as for Vertical Take-Off and Landing of UAV’s. One of the main advantages of this turboprop engine is its light weight combined with a power thrust of 241 HP (180 kW) and its capacity to achieve flight levels of 29,500 ft. (9,000 m) with a maximum starting height of 19,700 ft. (6,000 m). The system is designed so that the engine can be installed in the aircraft in either pusher or tractor mode.
Standard Specification includes: Fuel-oil System, Control System, Ignition Unit and Connection Cables.
Main features
- Excellent power-to-weight ratio.
- Installation possible in both pusher or tractor mode.
- Gearbox design facilitates installation of a high-speed electric generator having up to 3.0 kVA output power.
- Modular design features a gas generator, power turbine and gearbox.
- Neat compact design with low weight and high static power
.
